PTFE Piston Ring Ø68×48×1 mm — Oil-Free Compressor MZB-550H, MZB-1200H, Moldova

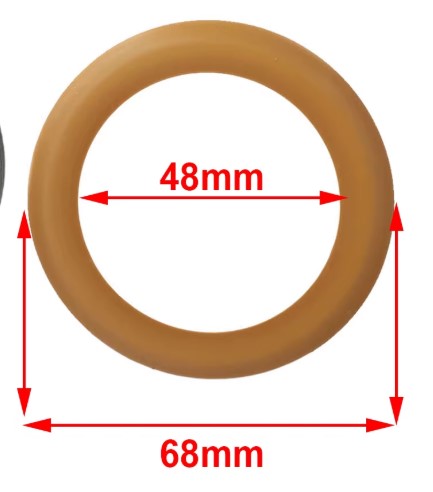

Dimension notation breakdown — Ø68×48×1 mm:

• Ø68 mm — outer diameter, matches the cylinder bore;
• Ø48 mm — inner diameter, matches the piston seat diameter;
• ring width — (68−48)/2 = 10 mm — bridges the cylinder/piston clearance;
• 1 mm — axial thickness (height) of the ring, matches the piston groove depth.

The material is PTFE (polytetrafluoroethylene, “Teflon”). Friction coefficient 0.04–0.10 — one of the lowest of any solid material, enabling the ring to run dry without lubrication. PTFE operating temperature: −60…+260 °C — comfortably covers the cylinder temperature range of an oil-free compressor (80–140 °C at rated load). Chemically inert: does not react with water vapour, condensate or most aggressive media.

The yellow colour results from a bronze or glass-fibre filler that increases the stiffness and wear resistance of the PTFE matrix compared with unfilled white PTFE. Compatibility confirmed for MZB-550H and MZB-1200H. Material standard: DIN EN ISO 12086.

Technical Specifications — PTFE Ring Ø68×48×1 mm

💡 Expert tip: When replacing rings, do not use sharp screwdrivers or metal picks to remove old PTFE rings from the piston. A scratch on the aluminium groove surface even 0.1 mm deep creates an air leak past the new ring — the compressor will not reach working pressure. Use a plastic spatula or wooden stick.

PTFE Ring Ø68×48×1 mm — Equivalent Parts by Brand

⚠️ Warning: Rings with the same D×d×h made from unfilled white PTFE have 2–3× shorter life. Yellow colour indicates filled PTFE (bronze, glass fibre, graphite). Do not confuse with silicone or nitrile rings of similar diameter — those are unsuitable for compression sealing.

5 parameters to verify when evaluating an alternative ring:

1. Outer diameter D = 68.0 mm (tolerance ±0.05 mm — critical)
2. Inner diameter d = 48.0 mm (piston seat fit)
3. Thickness h = 1.0 mm (matches piston groove depth ±0.05 mm)
4. Material — filled PTFE, not pure PTFE and not rubber (NBR/EPDM)
5. Operating temperature — at least +200 °C

Signs of Ring Wear — When to Replace

The PTFE ring wears gradually: the material erodes, axial thickness decreases from 1.0 mm to 0.5–0.6 mm, and sealing deteriorates. Watch for the following symptoms:

Loss of discharge pressure

• The compressor cannot reach rated pressure (8 bar for MZB-550H) or takes noticeably longer than at commissioning
• A 24 l receiver takes more than 3 minutes to fill to 8 bar (norm: 1.5–2 min for MZB-1200H)
• Pressure does not hold when load is disconnected — audible hiss from the cylinder

Overheating and noise

• Cylinder temperature exceeds 160 °C (check with a pyrometer) — result of hot gas blow-by past the ring
• Metallic scraping noise during operation — the ring has worn to metal, the piston is scoring the cylinder
• Characteristic “puffing” sound on every piston stroke — ring not seating properly

Degraded compressed-air quality

• PTFE dust at the outlet — the ring is disintegrating and fragments are entering the valve
• Higher compressed-air temperature at the outlet under unchanged load

Replacement rule: when ring thickness has worn to 0.5 mm (measure with a calliper after removing from the piston) — replace immediately. Preventive replacement every 12 months or 600 operating hours (whichever comes first) costs far less than replacing a damaged piston or cylinder.

PTFE Piston Ring Ø68×48×1 mm — Replacement Procedure

Estimated time: 25–35 minutes. Tools: M6/M8 spanner set, circlip pliers, vernier calliper, plastic spatula.

6. Step 1 — De-energise and depressurise. Disconnect the compressor from the 220 V supply. Open the condensate drain tap or press the pressure-relief valve. Wait for the gauge to read 0 bar. Allow cylinders to cool below 40 °C (burning PTFE releases toxic fluorine-containing gases).
7. Step 2 — Remove the cylinder head. Undo the 4 × M6 cylinder head bolts in a cross pattern (ensures even gasket unloading). Remove the head, valve plate and gasket. Clean all mating surfaces with a soft brush — no abrasives.
8. Step 3 — Extract the piston. Turn the flywheel by hand to bring the piston to TDC (top dead centre). Use circlip pliers to remove the gudgeon-pin circlip. Drive out the pin with a plastic drift (never a steel hammer — it deforms the bore surface). Withdraw the piston from the cylinder.
9. Step 4 — Remove old ring and inspect piston. Use a plastic spatula to ease the PTFE ring off the piston groove. Measure groove depth with a calliper: tolerance 1.0 ±0.05 mm. If depth exceeds 1.1 mm, the groove is worn out — replace the complete piston assembly with a new ring.
10. Step 5 — Fit new PTFE ring Ø68×48×1 mm. Seat the new PTFE ring in the piston groove (PTFE is flexible enough to expand slightly with your fingers — no tools required). Do not apply any lubricant.
11. Step 6 — Reassemble cylinder and verify operation. Insert the piston with its ring vertically into the cylinder with no tilt. Refit the gudgeon pin and circlip. Install the gasket, valve plate and head; torque the bolts in a cross pattern to 8–10 N·m. Run the compressor for 5 minutes: pressure should reach 6–7 bar — a sign of normal ring bedding-in.

Why Acvatron SRL: 5 Compelling Reasons

Engineering-led selection

Before dispatch, an Acvatron engineer verifies the ring dimensions against the mounting drawing of your specific piston. This eliminates the “ring is 0.1 mm under-size — had to disassemble again” scenario that is typical when buying from marketplaces without specialist advice.

Filled PTFE, not a cheap substitute

We supply rings made from filled PTFE (yellow, with bronze or glass filler) — 2000 operating hours service life. Not unfilled white PTFE with a 150–200 h life that is frequently sold as “original” on trading platforms.

Stock held in Chisinau

Consumable spare parts for oil-free compressors — rings, valve plates, gaskets — are held in stock at: 12 Sarmizegetusa St, Office 129. Same-day dispatch for orders placed by 15:00.

Technical support during replacement

An engineer on +373 22 503-580 advises on head-bolt torque, ring gap orientation and diagnosis of the wear cause. If rings are wearing prematurely — we identify the root cause (overheating, air contamination, incorrect assembly).

Documentation for legal entities

Tax invoice, delivery note and part data sheet specifying material and tolerances — on the day of dispatch. For food-industry enterprises requiring PTFE material certification — confirm availability when ordering.

Problems You Have Already Experienced

• The compressor runs but pressure will not rise above 5–6 bar at a nominal of 8 bar — the spray gun “chokes”, paint surface shows bubbles from uneven pressure.
• After buying “identical” rings from a marketplace, the compressor loses power again after 3 months — turned out to be pure PTFE instead of filled.
• On disassembly, the piston groove was found damaged: a previous technician had fitted the ring with a screwdriver and scratched the aluminium — the entire piston had to be replaced.
• Head bolts were tightened “by feel” — after 2 months a hiss and pressure loss: the gasket had crushed from uneven torque.
• The compressor sat idle for a week waiting for rings from an unknown supplier — the spray booth was out of action and deadlines were missed.

Delaying PTFE ring replacement leads to piston or cylinder bore damage in 60% of cases — a repair that costs 5–8× more than timely replacement of the consumable.

Frequently Asked Questions

❓ How does a PTFE ring differ from a rubber piston ring?

PTFE (polytetrafluoroethylene) is a fluoropolymer with a friction coefficient of 0.04–0.10, capable of running dry up to 260 °C. Rubber rings (NBR, EPDM) tolerate up to 120–150 °C and require a compatible working fluid. Oil-free compressors use only PTFE rings: they do not contaminate the compressed air with oil and retain their geometry at high cylinder operating temperatures. Fitting a rubber ring instead of PTFE will cause its destruction within 10–20 operating hours.

❓ How often should PTFE piston rings be replaced in an oil-free compressor?

The rated service life of a filled PTFE ring for a 550–1500 W compressor is 2000 operating hours under normal conditions (ambient temperature up to 40 °C, relative humidity up to 80%). Signs that replacement is needed: discharge pressure has dropped more than 15% from nominal, receiver fill time has doubled, characteristic hiss during compression. Preventive annual replacement costs far less than an unscheduled stoppage.

❓ Is the Ø68×48×1 mm ring compatible with the MZB-1200H compressor?

Yes, the PTFE ring Ø68×48×1 mm is the standard replacement part for the MZB-550H and MZB-1200H compressors. The 68 mm outer diameter matches the cylinder bore, 48 mm inner diameter matches the piston seat, and 1 mm thickness matches the ring groove depth. Before fitting, verify groove depth with a calliper: it should be 1.0 ±0.05 mm.

❓ How many piston rings are in one cylinder of the MZB-550H compressor?

The MZB-550H cylinder has 1 ring per piston: the compression ring (top). The ring measures Ø68×48×1 mm and is made from filled PTFE. When replacing, check the piston groove depth with a calliper. If the depth exceeds 1.1 mm, replace the piston assembly together with the ring.
